LED Cabinet Light Automation Switch Series
![](http://tinkerbee.in/wp-content/uploads/2021/03/cabinet_switchbee.png)
SwitchBee is one of the world’s smallest, safest, long-life, low-power, digital smart switches for cabinet LED light automation.
These smart and tiny devices do the magic that makes lights inside (or outside) office, kitchen or clothing cabinets/ doors glow when the draw/ door is opened and ensures that the lights are off when closed.
SwitchBee has 2 variants as of now:
- SwitchBee MagSense
- SwitchBee IrSense

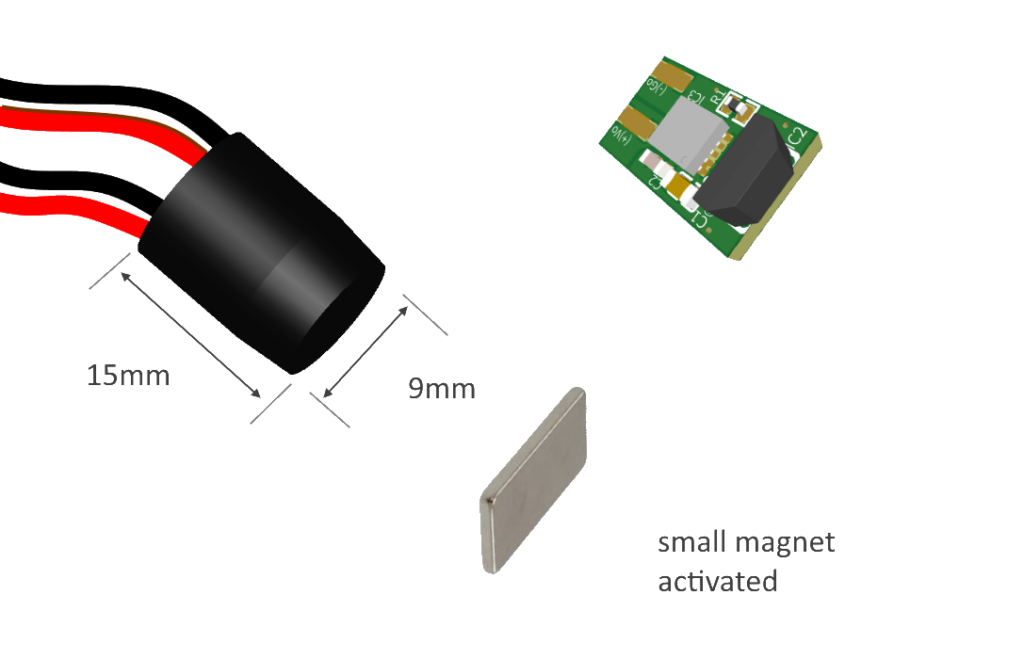

SwitchBee MagSense
![](http://tinkerbee.in/wp-content/uploads/2021/08/IMG_20210818_202133-1-1024x1019.jpg)
Simple and fast fitting

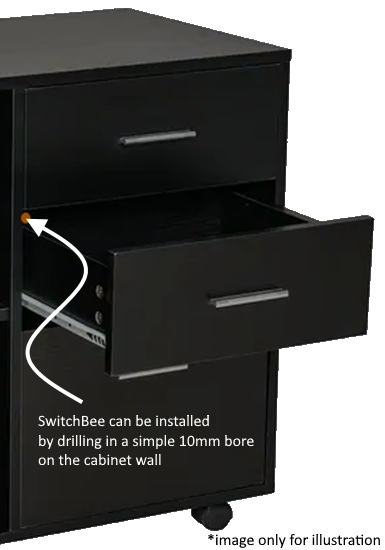

- Just drill a 10mm bore + wire channel on cabinet wall
- Plug input to LED power source
- Plug output to LED strip
- Align and attach the magnet to cabinet door using screws/adhesive
- Done!
Can be completely hidden and invisible under veneer
Fully digital magnetic switch
- Fully digital solid-state magnetic switch, (not a cheap reed-relay!)
- No mechanical/ moving parts
- Silent operation
- Ultra long-life sensor
- Drive 12V/ 24V LED strips and upto 2.5A current
- 56 milliOhm digital output switch
Safety by design
- Input protection against 1-kV surge, (42-Ω)
- IEC61000-4-5 (8/20 µs, 27 A)
- IEC61643-321 (10/1000 µs, 3.5 A)
- Level 4 IEC 61000-4-2 ESD Protection
- Clamping Voltage of 34 V at 27-A, 8/20-µs surge current
- Reverse polarity protection on input
- Under-voltage lockout at 4.8V
- Output thermal shutdown at 135°C
- Output over-current shutdown > 2.7A
- Shutdown on output short-circuit
- Standard JST polarity protected plugs for input and output (optional)
Designed and made in India with quality parts sourced from Indian, US and EU suppliers

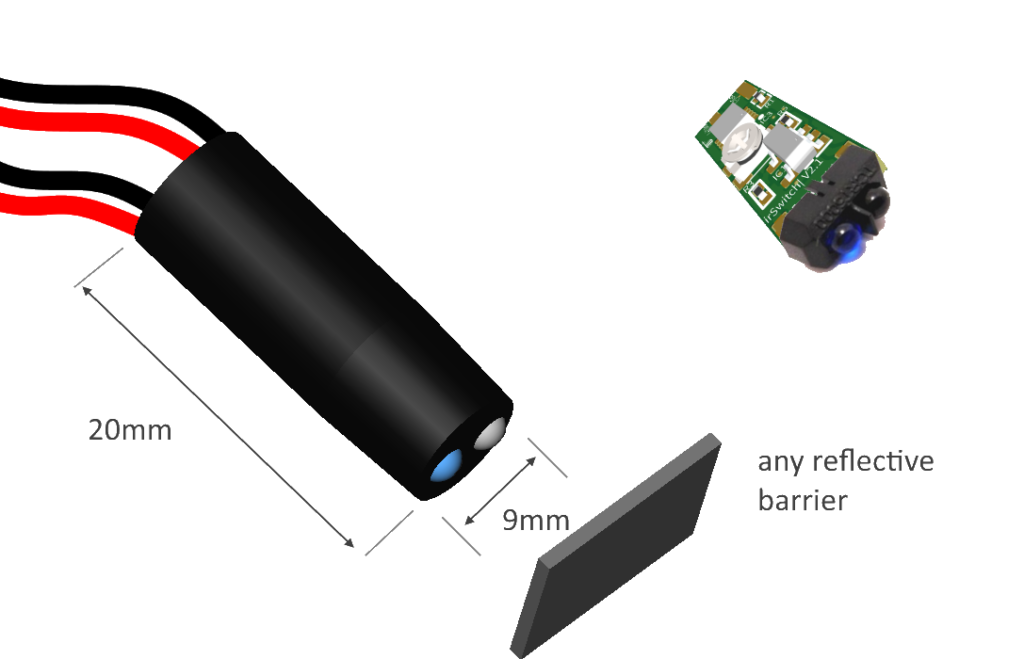

SwitchBee IrSense
![](http://tinkerbee.in/wp-content/uploads/2021/03/irSwitchInside-1024x659.png)
Similar specs as above except:
- Works with any reflective surface to activate the switch. Based on Infra-red light reflection based proximity sensing
- Slightly greater current draw than MagSense, as required for the infra-red driver
- Not completely hidden because the infra-red reflectance technology requires an optical path to operate
We are accepting pre-orders as of now. So do reach out to logesh@tinkerbee.in now for more details
